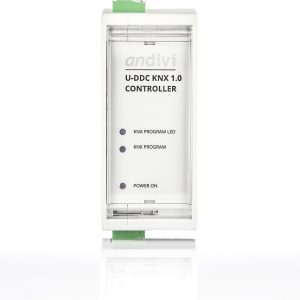

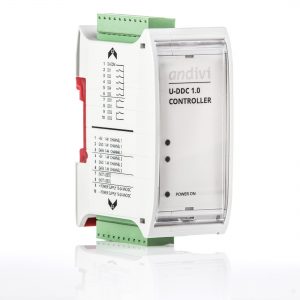

Andivi Automation Station – Controller U-DDC is from a product family of freely programmable DDC controllers supporting Modbus, KNX and BACnet. They can be used together with integration of other Andivi products or third-party devices.
Highlights of the U-DDC product family:
state of the art programing, schedulers, alarm management, user management, remote management with VIA Building Management System.
Use of Modbus, BACnet and KNX devices on the same U-DDC controller; Stand alone application or use in a device or system network.
Highlights of the U-DDC product family:
5 digital inputs, 2 digital outputs, integrated Web Server, integrated real time clock, Local BUS connection, Graphical & Textual programing with Codesys, max. 2 x 10 1-wire temperature sensors directly connected to U-DDC controller.
Optional features:
MySQL and MS SQL database support and an optional software extension with BACnet.
Technical specifications
| U-DDC 1.0 | U-DDC KNX 1.0 | ||
|---|---|---|---|
 Inputs | Digital inputs | 5 (optically isolated) | |
| Digital outputs | 2 (relay 230VAC, 2A) | ||
 Communication | Modbus | Modbus TCP/IP protocol master/slave for communication with SCADA building management systems.Modbus RTU RS-485 protocol master/slave for communication with external modules. 4x BUS; max. 32 Modbus slave devices. | |
| BACnet | BACnet Controller (B-BC) for buildings corresponds to the BACnet standardized profile for devices according to DIN EN 16484-5. | ||
| KNX | KNX adapter for communication with KNX systems; max. 253 KNX group objects | ||
| Web server | Integrated Web server with visual and textual form, freely adaptable to project, user profiles, language select, HTTPS support. | ||
 BUS | BUS (sensors) | BUS serial connection for temperature sensors with 1-wire BUS. 2x BUS, 10 temperature sensors/BUS, total 20 temperature sensors. Intelligent addressing system. | |
| BUS (Local) | Local BUS connection with I/O modules connected on a DIN rail system. | ||
 Adapter | Ethernet | Ethernet adapter RJ-45 (10/100 MBit/s): for communication and programing. | |
| USB | USB adapter 4x / RS-485, RS232 for communication with external I/O modules. | ||
 Clock | Clock | Integrated real time clock with automatic synchronization with NTP protocol. | |
 Programing | Programing | Visual and textual programing IEC61131-3 with simulation and emulation. Custom function blocks support. CFC, ST, FDB, LD, IL, SFC support. Online error check. | |
 Connection | Connection | Connection with SQL data base systems. MS SQL and MySQL support. | |
 System information | CPU | ARM Cortex-A7, Quad-core, 900 MHZ | |
| Data Storage | SDRAM 1 GB | ||
| Operation System | LINUX | ||
| Storage | Micro SD card for application program and data storage. | ||
| Power supply | 15-24VAC/DC, max. 5W | ||
 Mounting | Mounting | DIN-compliant design (DIN rail) | |
| Dimensions | 101 × 80 × 45 mm | ||
SOFTWARE AND HARDWARE EXTENSIONS
Andivi U-DDC 1.0 and Andivi U-DDC KNX 1.0 have several different software and hardware extensions possiblities. The software expansion packages have been summarized below:
| HARDWARE TYPES | U-DDC 1.0 | U-DDC 1.0 KNX | |
|---|---|---|---|
| MODBUS | |||
| TCP/IP | integrated | integrated | |
| RTU RS-485 (U-SW-MOD) | optional software and hardware extension | ||
| RAZŠIRITVE | |||
| BACnet (U-SW-BAC) | optional software extension | ||
| WebServer (U-SW-WEB) | optional software extension | ||
| SQL data base (U-SW-SQL) | optional software extension | ||
EXTENDED PRODUCT FAMILY
Andivi U-DDC has been devloped for several areas of application. As a product family Andivi U-DDC further more extentes with two products;
Connectivity between the Andivi U-MIO input-output unit and the Andivi U-DDC controller
Controller U-DDC can be connected to multiple U-MIO input-output units.
Option 1: The U-DDC controller can connect up to 5 units of U-MIO by the internal BUS on the DIN rail ((I2C).
Option 2: The U-DDC controller can connect up to 4 Modbus RS-485 BUS lines and on each of the lines up to 32 input-output U-MIO units (up to 128 U-MIO units per one U-DDC).
U-DDC and U-MIO provide robust and high-performance integrated solution that has enormous potential in building automation and it is financially very accessible.
